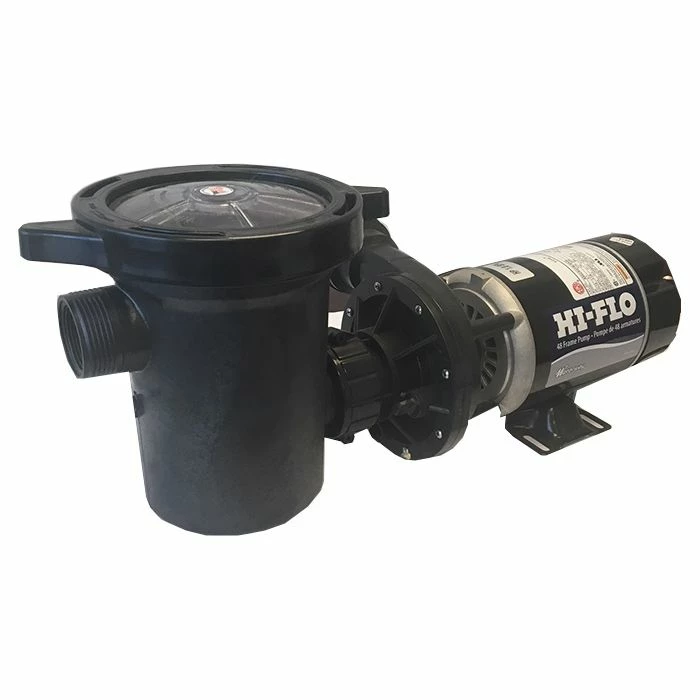

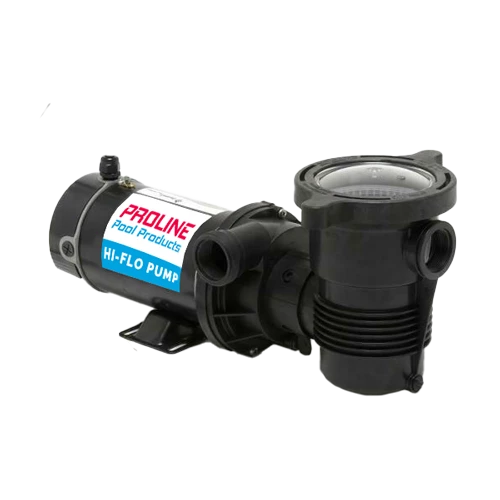

Proline 1 HP Hi-Flo II Above Ground Horiz. Discharge Pump

Model Number: WW 340-9029

Horsepower: 1

Connection Size: 1 1/2″

Compatible With: Above Ground Pools

Voltage: 115v

Warranty: 1 Year

What powers the Proline 1 HP Hi-Flo II Above Ground Horiz. Discharge Pump?

• 115 volts and 1 HP delivers high-volume output that can pump any size above ground pool
• Proline’s impeller design maintains the single speed and optimum pressure
• The pump has a horizontal discharge and is best for systems already set-up for horizontal discharge pumps

Installation Tips for the Proline 1 HP Hi-Flo II

• The intake connection has 1.5″ union threads and 1.5″ FPT (female pipe taper)
• The discharge connection has 2″ union threads and 1.5″ FPT
• The power cord is a 3″ Twist-Lock cord, for safety
• For easy installation, the wet end of this pump rotates

Does the Proline 1 HP Hi-Flo II need maintenance?

• Yes! You must maintain this pump’s basket by cleaning it
• The clear lid allows you to see when the basket needs to be cleaned
• This is a durable pump, designed for all-weather performance
• It’s housing is fiberglass-filled resin, which means it is corrosion-proof
• This pump comes with a one-year warranty
