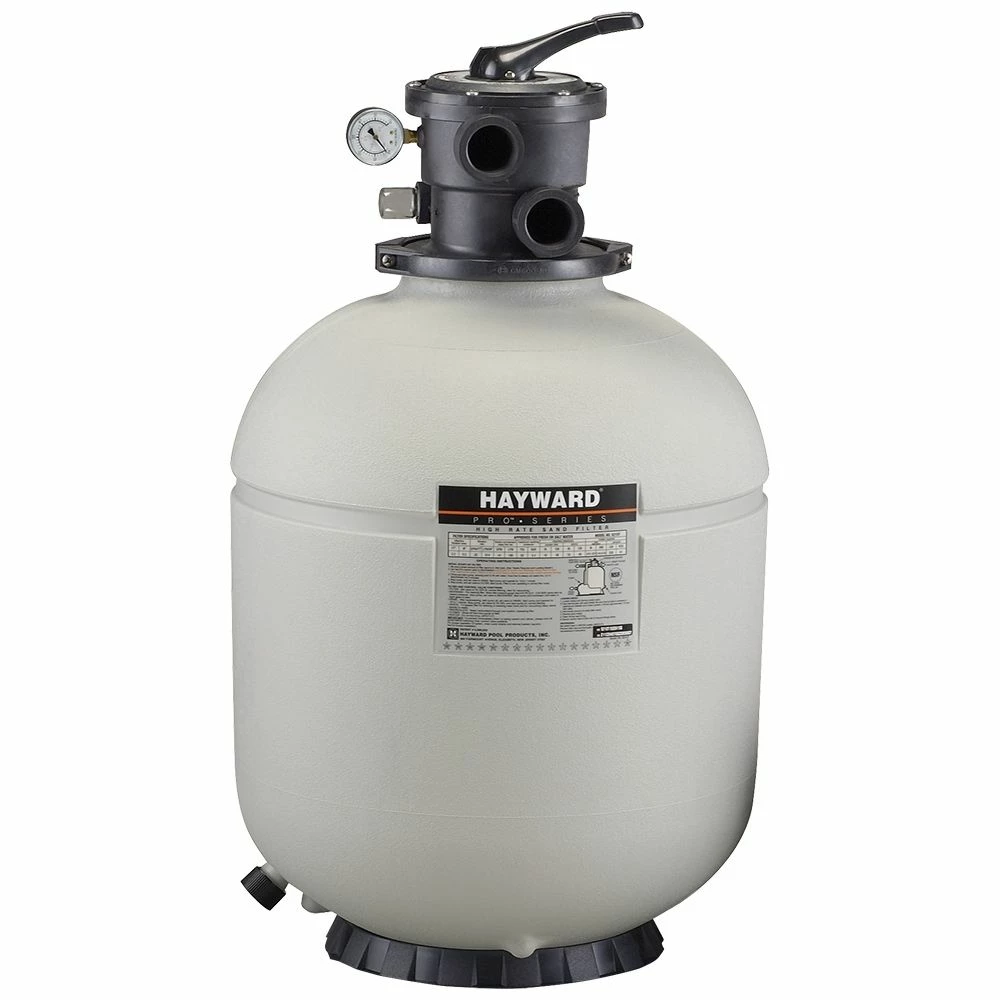

Hayward 24-Inch Pro Series Sand Filter

Its self-cleaning under drain assemblys slotted laterals allow a balanced flow of clean water back to the pool. Its full flow technology allows for optimum filtration and superior flow rates for years of trouble-free operation.

Features:
Weather-proof tank manufactured with color-fast polymeric material
Patented easy to use multi-port valve
Superior flow rates for maximum filtration and minimum energy costs
1.5 Inlet and Outlet
3 Of hose included
300 Pounds of sand required (not included)
Installing the Hayward Pro Series Sand Filter
This pool filter should be situated in safe location that avoids direct and harsh exposure to inclement weather. While it is intended for outdoor use, it is particularly important to protect any electrical components from the elements.

For optimal performance, make sure that the pump is located below the swimming pool water line. Ensure that the mounting platform is level and keep the filter valve handle, drain outlet and pressure gauge accessible for convenient operation.

Maintaining the Hayward Pro Series Sand Filter
The Hayward Pro Series Sand Filter is one of the easiest sand filters to maintain on the market. Simply turn the 7-position VariFlo valve into the desired position for backwashing, rinsing, filtering, filtering to waste, and recirculating. It is always wise to change your filter sand every 3-4 seasons.

Product Name: Hayward 24″ Pro Series Sand Filter
Model Number: HAY S244T
Filter Diameter: 24″
Connection Size: 1.5″
Compatible With: Above Ground Pools / Inground Pools
Sand Required (not included): 300 lbs
Warranty: 1 Year
